    4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body

    Ask Lasest Price
    Brand Name : FABIA
    Certification : ISO9001,CE,CCS,DNV
    Model Number : 1/8 inch ~ 36 inch
    Price : Negotiable
    Delivery Time : 15-30 work days
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union
    Supply Ability : 100-1000 set per week
    • Product Details
    • Company Profile

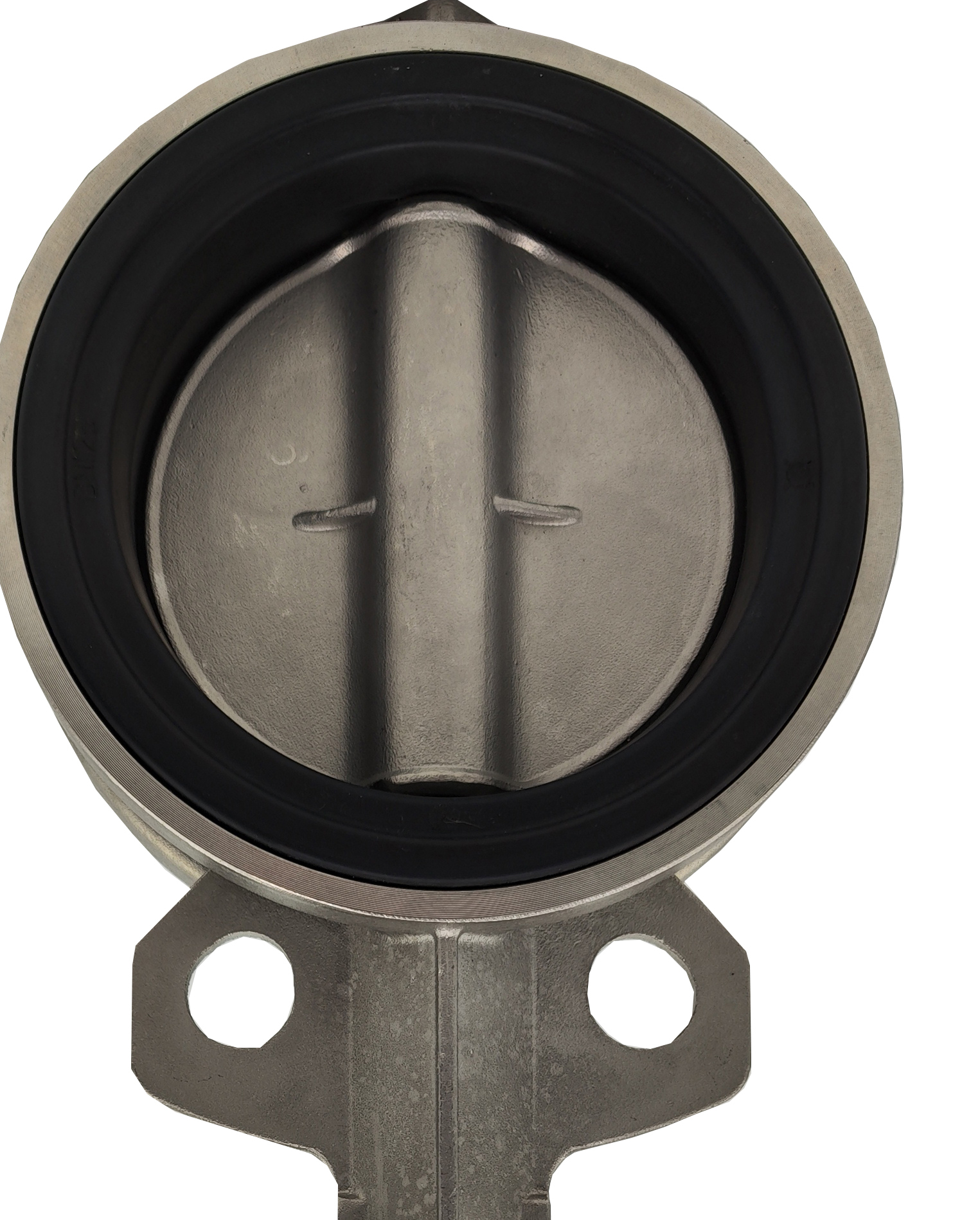

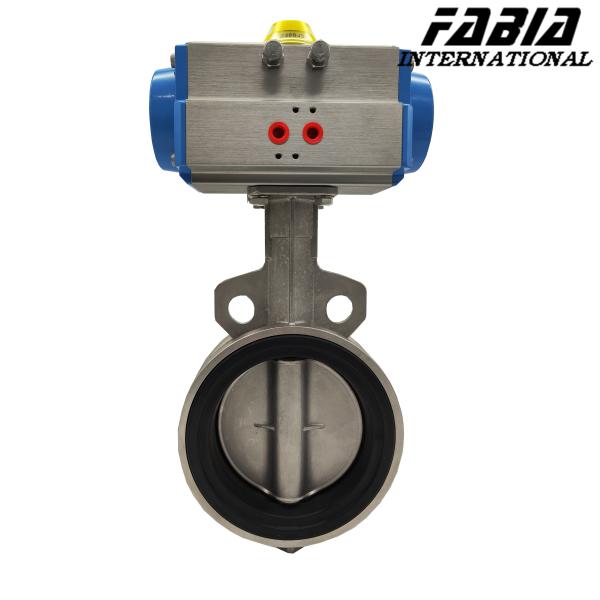

    4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body

    FABIA Stainless Steel Pneumatic Clamp Butterfly Valve


    1. Description:


    Widely used in water industry, water supply and drainage, heating and steam supply, water treatment, petrochemical industry, paper making, smelting, food brewing, pharmaceutical and medical equipment, textile printing and dyeing, rubber machinery, organic and inorganic chemical industry, chemical preparations and other industries of pipe network and equipment.


    2. Specification:


    FABIA Valve Parameter List
    Valve type:Stainless Steel Pneumatic Clamp Butterfly Valve
    Size:2 inch ~ 36 inch
    Material:WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
    Connection type:Butt Clamp/Flange Connection
    Driving model:Manual/Worm gear drive/Pneumatic/Electric
    Pressure rating:PN0.1~PN16
    Temperature:-40℃~1000℃
    Model:FB-D..........

    3. Features:


    • Main advantages of butterfly valve, simple structure, small size, light weight, low cost, the characteristics of the pneumatic disc valve is especially significant, installed in the high-altitude tunnel, through the two five-way solenoid valve control operation is convenient, but also can adjust the flow medium.
    • Small fluid resistance, large diameter pneumatic disc valve fully open when the effective flow area is large, fast and easy to open and close, the disc can be rotated 90 Angle to complete the opening and closing,
    • Because the medium force on both sides of the rotating shaft plate hand is close to equal, and the torque generated in the opposite direction, so the opening and closing torque is small, low pressure can achieve a good seal,
    • Disc valve sealing materials are butadiene rubber, fluorine rubber, Edible rubber, lined with tetrafluoroethylene, so the sealing performance is good, in which the hard seal disc valve.
    • Hard laminated metal sheet with metal hard seal and elastic seal heavy advantages, regardless of low temperature conditions have excellent sealing performance.
