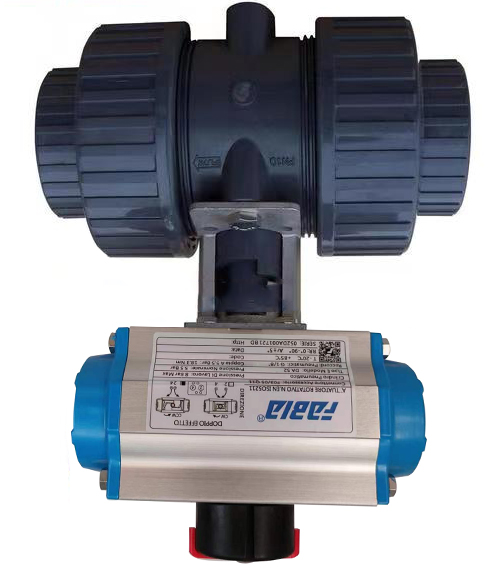

FABIA Pneumatic High Pressure Soft Seal Ball Valve

1. Description:

When turning off, rotate the handwheel with the second hand, the rim begins to decline and the ball leaves the nozzle and begins to rotate.

Continue to rotate the handwheel, and the rim is acted by the guide pin embedded in its upper spiral groove, so that the shaft sleeve and the cube rotate 90° at the same time.

When close, the cube has been rotated 90° without contact with the washer.

First few turns of the handwheel shaking, the angular plane above the rim of the wheel is mechanically wedged to press the cube, so that it is closely pressed on the nozzle to achieve a complete seal.

2. Specification:

3. Features:

• Fluid resistance is small, and the valve of the full diameter has basically no flow resistance.
• Simple structure, small size, light weight.
• Be close. It has two sealing surfaces, and the sealing surface material of the valve uses all kinds of plastics, which has good sealing performance and can achieve complete sealing. It can also be used in vacuum systems.
• Convenient operation, fast opening and closing, high-power valve from full run to full close as long as the rotation of 90°, in order to remote control.
• Easy to repair, simple valve structure, sealing ring is usually active, disassembly and replacement are more convenient.
• When fully open or fully closed, the sealing surface of the cube and nozzle is isolated from the medium, and the medium will not cause erosion of the sealing surface of the ball valve when it passes through.
• Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
• Because the valve has scrubbing property during opening and closing, it can be suitable for media with floating solid particles.
